Northrop Grumman RQ-180

1

Northrop Grumman RQ-180

offline
  • Toni  Male
  • SuperModerator
  • Pridružio: 18 Jun 2008
  • Poruke: 30145



Pravo niotkuda do 2015. stize nova zverka.

Citat:A large, classified unmanned aircraft developed by Northrop Grumman is now flying—and it demonstrates a major advance in combining stealth and aerodynamic efficiency. Defense and intelligence officials say the secret unmanned aerial system (UAS), designed for intelligence, surveillance and reconnaissance (ISR) missions, is scheduled to enter production for the U.S. Air Force and could be operational by 2015.

Funded through the Air Force’s classified budget, the program to build this new UAS, dubbed the RQ-180, was awarded to Northrop Grumman after a competition that included Boeing and Lockheed Martin. The aircraft will conduct the penetrating ISR mission that has been left unaddressed, and under wide debate, since retirement of the Lockheed SR-71 in 1998.

Neither the Air Force nor Northrop Grumman would speak about the classified airplane. When queried about the project, Air Force spokeswoman Jennifer Cassidy said, “The Air Force does not discuss this program.”

The RQ-180 carries radio-frequency sensors such as active, electronically scanned array (AESA) radar and passive electronic surveillance measures, according to one defense official. It could also be capable of electronic attack missions.


Dugacak je clanak, ima 4 strane Arrow http://www.aviationweek.com/Article.aspx?id=/artic.....643783.xml



Registruj se da bi učestvovao u diskusiji. Registrovanim korisnicima se NE prikazuju reklame unutar poruka.
offline
  • jazbar
  • Legendarni građanin
  • Pridružio: 28 Dec 2009
  • Poruke: 16059
  • Gde živiš: Lublana

Prema članku izgleda da se radi o globalnom bespilotnom špijunskom vazduhoplovu sa dodacima za elektronsko ometanje.



offline
  • boksi  Male
  • Legendarni građanin
  • Pridružio: 11 Jun 2008
  • Poruke: 7818

"RQ-180" iz „Nortrop Grumana“ je najnoviji tajni projekat bespilotne letelice vojske SAD, a već je u fazi testiranja u vazduhoplovnoj bazi poznatoj kao Oblast 51, piše časopis "Aviation Week".


Za razliku od nedavno najavljenog projekta „sr-72“, naslednika legendarne „Crne ptice“, nova bespilotna letelica je daleko realniji projekat, navodi časopis.

http://www.rts.rs/page/magazine/sr/story/1882/Tehn.....elica.html

offline
  • djox  Male
  • Legendarni građanin
  • Pridružio: 23 Nov 2010
  • Poruke: 96088

RQ-180 Stealthy ISR Drone Already in Service: Report
Citat:Almost six years after Aviation Week first disclosed the existence of a large, classified unmanned aircraft developed by Northrop Grumman, there is a growing body of evidence that the stealthy vehicle is now fully operational with the U.S. Air Force in a penetrating intelligence, surveillance and reconnaissance (ISR) role.

Thought to be dubbed the RQ-180, the advanced design is believed to have been flying since 2010 and under operational test and evaluation since late 2014. According to new information provided to Aviation Week, the aircraft became operational with the recently reformed 427th Reconnaissance Sqdn. at Beale AFB, California, this year. The Air Force declined to comment on the status of the program.

RQ-180 First flight believed to have occurred in 2010. At least seven vehicles have been developed and are in operation.

Arrow https://www.defense-aerospace.com/article-view/rel.....eport.html
Arrow https://twitter.com/TheDEWLine/status/1187118625322389504

offline
  • Toni  Male
  • SuperModerator
  • Pridružio: 18 Jun 2008
  • Poruke: 30145

Ovo cudo bi trebalo da je ogromno...



Citat:Almost six years after Aviation Week first disclosed the existence of a large, classified unmanned aircraft developed by Northrop Grumman, there is a growing body of evidence that the stealthy vehicle is now fully operational with the U.S. Air Force in a penetrating intelligence, surveillance and reconnaissance (ISR) role.

Thought to be dubbed the RQ-180, the advanced design is believed to have been flying since 2010 and under operational test and evaluation since late 2014. According to new information provided to Aviation Week, the aircraft became operational with the recently reformed 427th Reconnaissance Sqdn. at Beale AFB, California, this year. The Air Force declined to comment on the status of the program.

Although images of the aircraft remain elusive, an assessment of new evidence enables a clearer picture to be drawn of the secret aircraft’s progress through early flight testing, development and initial deployment. New information from open sources backs up the first reports of its existence published in 2013 and fills in gaps in the program’s earlier history as well as subsequent test and operational evaluation at sites mostly in and around California and Nevada.

Developed to conduct the penetrating ISR mission that has been left unaddressed since the retirement of the Lockheed SR-71 in 1999, the RQ-180 ultimately emerged from what was originally a large unmanned combat air vehicle (UCAV) design proposed by Northrop Grumman to the Air Force in 2005. At the time, Northrop was competing against Boeing with a smaller tailless design for the Air Force/U.S. Navy Joint Unmanned Combat Air Systems (J-UCAS) program.

However, when J-UCAS was canceled in 2006 after the Pentagon’s Quadrennial Defense Review opted to restructure the joint-service program into a Navy-only UCAV carrier suitability demonstration, funding was removed from the fiscal 2007 defense budget request. A total of $239 million was requested in lieu of the Pentagon funding to begin a U.S. Navy carrier-based, long-endurance UCAV demonstration program.

At the same time, Air Force funds were transferred into a classified high-altitude, long-endurance (HALE) program which, it is believed, led to a competition between Boeing, Lockheed Martin and Northrop Grumman. Northrop also publicly discussed a range of longer-winged X-47C configurations around this time. The largest of these was a 172-ft.-span design with two engines derived from General Electric’s CF34 and capable of carrying a 10,000-lb. weapon load.

Although Aviation Week commissioned an artists’ impression of the aircraft incorporating a cranked-kite wing configuration when it broke the RQ-180 story (AW&ST Dec. 9, 2013, p. 20), industry sources have since said the aircraft differs in detail from the published concept. Additional evidence now suggests the final configuration may be closer to the company’s more familiar flying-wing designs, with a simpler trailing edge similar to that seen in the Air Force’s official rendering of the B-21 Raider. Northrop Grumman originally crafted the same basic trailing edge configuration for the B-2 under the Advanced Tactical Bomber program but changed it to the stronger load-carrying sawtooth design when the Air Force added the low-level penetration role.

The RQ-180 design also was likely strongly influenced by Northrop Grumman’s work for the Air Force Research Laboratory’s (AFRL) SensorCraft project, aimed at developing technologies for future stealthy, high-altitude unmanned surveillance platforms. In 2002, AFRL unveiled several SensorCraft vehicle studies, including a Northrop Grumman flying wing with a highly loaded airfoil capable of handling large aeroelastic deflections. Two years later, the company revealed it was partnering with AFRL to mature advanced conformal antenna integration technology for SensorCraft under a five-year, $12 million effort called the Low-Band Structural Array (Lobstar) program. At the time, the company said Lobstar would “enhance the surveillance capabilities of aerial vehicles by embedding antennas in the primary load-bearing structures of composite aircraft wings.”

In 2007, following a yearlong Air Force HALE contest, Northrop signaled it had been successful when the corporation’s leaders reported they expected to win a major restricted program. By June of that year, observers of the Air Force’s top-secret Area 51 test complex at Nellis AFB, Nevada, noted that construction was underway for a new large hangar at the “Southend” zone of the Groom Lake facility. The size and dimensions of the building suggested it was being made ready for an aircraft with a relatively large span wing.

As the new Groom Lake hangar neared completion in early 2008, Northrop Grumman’s financial reports revealed the company had been awarded a large classified aircraft development contract valued at $2 billion for an operational ISR UAV with an unprecedented combination of extreme low-observable (LO) features and aerodynamic efficiency. The development effort was undertaken by Northrop Grumman’s Advanced Technology Development Center, the equivalent of Lockheed Martin’s Skunk Works or Boeing’s Phantom Works.

In 2009, with Northrop well underway on low-rate initial production of the RQ-180, the Air Force began preparations to evaluate the new vehicle and established a flight-test organization at Groom Lake dubbed the “Mad Hatters.” That same year, the Air Force published an “unmanned aircraft systems (UAS) flight plan” which outlined a near-term priority requirement for an LO penetrating ISR “special category” UAS. In February 2009, a paper by Col. Eric Mathewson, director of the Air Force’s UAS Task Force, referred to an unidentified project as MQ-L/O. (AW&ST Aug. 29, 2011, p. 46).

New information given to Aviation Week now points to 2010 as the key year for the program. First flight of the prototype air vehicle at Groom Lake, known as V1, was believed to have taken place on Aug. 3, 2010. Circumstantial evidence that supported the buildup of pre-first-flight test activity included frequent flights to the site by Northrop Grumman-owned Beech 1900D logistics aircraft, one of which was seen parked by the large Southend hangar in a May 2010 satellite image.

The first prototype, V1, had been in flight testing for more than 14 months when a second vehicle, V2, is thought to have joined the test campaign in November 2011. Three more test and development aircraft are also suspected of following the first vehicles into flight trials over the next 15 months, with first flights believed to have occurred in November 2012 (V3), July 2013 (V4) and February 2014 (V5).

Following the first flight of the fifth aircraft, RQ-180 testing transitioned to Edwards AFB, California, where Detachment 1 of the 53rd Test and Evaluation Group was officially stood up at the secretive South Base area in March 2014. Tasked with operational test and evaluation, Detachment 1 appears to be a logical choice for the role as the group’s Detachment 2, based at Beale AFB, California, performed evaluations of the Lockheed Martin U-2R/S and RQ-4 Global Hawk.

Activity in the program stepped up through the remainder of the year, with the first flight of V6 believed to have taken place in September 2014. In late 2014 and early 2015, a unit described as Detachment 2 of the 15th Test Flight was stood up at Edwards AFB, likely marking another key phase for acceleration of the new UAS capability toward front-line operational service.

The 15th Test Flight, part of the 53rd Wing headquartered at Eglin AFB, Florida, has responsibility for test management oversight of the Air Force’s high-priority, rapid acquisition programs. According to 53rd Wing instruction documents published in 2014 and updated in 2018, the 15th Test Flight “provides operational test management services for a specific subset of developmental systems that require expedited delivery to the warfighter.” Detachment 2’s sister unit, Detachment 1, was assigned at the time to provide test management of Lockheed’s RQ-170 Sentinel at Creech AFB, Nevada.

In November 2015, the program marked another significant event—believed to be the first flight of the seventh air vehicle. Eight months later, the system took another step toward its operational debut when Detachment 2 of the 9th Operations Group was established at Edwards South Base. The 9th Operations Group is the operational flying component of the Beale-based 9th Reconnaissance Wing and is usually tasked with training and equipping U-2R, RQ-4 and Beechcraft MC-12W Liberty combat elements.

Following the establishment of Detachment 2 in 2016, preparations for initial operations entered the final phases and are believed to have culminated in a secret long-range graduation test mission from Edwards sometime in early 2017. No details of the flight, thought to have been code-named Project Magellan, have been acknowledged, but the mission is thought to have focused on validating the performance of the autonomous navigation system at extremely high latitudes—possibly as high as the Geographic North Pole. It should be noted the secret code name was shared with Northrop Grumman’s public search to find an engineering base for the B-21 program around that time.

With this mission accomplished, the RQ-180 was seemingly fit for initial deployment in 2017. And in quick succession during August that year, the 9th Operations Group stood up two new supporting units. Detachment 3 was established at Beale, while Detachment 4 was set up at Andersen AFB, Guam, representing a significant ramp-up in preparations for operational readiness. Detachment 3 had previously operated the RQ-4 out of Guam, while Detachment 4 had also formerly operated the Global Hawk out of Sigonella AB, Italy.

The following year, 2018, another unit was established at Beale to further test and evaluate the readiness of the aircraft. The activation of Detachment 3 of the 605th Test and Evaluation Sqdn., the command-and-control and ISR test manager for the Air Force’s Warfare Center and Air Combat Command, was accompanied by the deactivation of Detachment 1 of the 53rd Test and Evaluation Group at Edwards AFB.

It is thought the assets and test personnel of the unit were immediately transferred to the newly activated 417th Test and Evaluation Squadron, an Air Combat Command unit under the 53rd Wing based in Nellis AFB, Nevada. Until recently the true test focus of the squadron – which was stood up in April 2018 - was linked with preparations for B-21 testing. However, at the Air Force Association meeting in September it was announced that the new bomber test role has been assigned to the 420th Test and Evaluation Squadron.

Further signs of RQ-180 regular operations support activity are believed to have been indicated by the activation during 2018 and early 2019 of Detachment 5 of the 9th Operations Group at Beale to serve as the schoolhouse unit for the aircraft. Given the 9th Operations Group’s role in training, planning and execution of U-2 ISR missions as well as training for RQ-4 flight crewmembers, this unit would be considered as a logical candidate to support and train RQ-180 operations.

In a final phase of changes this year, all of which have been focused on Beale, Detachment 3 of the 9th Operations Group was deactivated in April and its personnel and assets transferred and immediately activated again as the 427th Reconnaissance Sqdn.—a shadowy unit that previously operated the MC-12W and was inactivated in November 2015 when these aircraft were transferred to the U.S. Army. However, evidence from open sources indicates the current commander of the 427th Reconnaissance Sqdn. has held this role since 2015, even though the unit officially did not exist for most of that period.

Although the Air Force has made no reference to operations by the unit involving any particular aircraft type, the 427th Reconnaissance Sqdn., together with Detachment 5 of the 9th Operations Group and Detachment 3 of the 605th Test and Evaluation Group, hosted the opening of a new Common Mission Control Center at the base on April 23. The the new center will “provide combatant commanders scalable, tailorable products and services for use in contested environments,” the Air Force says. “Using software, hardware and human machines, the center will be able to manage C2 productivity, shorten the task execution chain, and reduce human-intensive communication.”


https://aviationweek.com/defense/usaf-unit-moves-reveal-clues-rq-180-ops-debut

offline
  • Pridružio: 26 Jun 2019
  • Poruke: 3154

Evo jos jednog teksta o RQ-180:
https://www.thedrive.com/the-war-zone/39882/how-th.....revolution
Generalno, izvidjacka platforma i game-changer kada je u pitanju umrezavanje, raspodela podataka i upotreba manjih (borbenih) dronova. Narodski receno, RQ-180 bice server, a svi ostali radne stanice.

offline
  • Toni  Male
  • SuperModerator
  • Pridružio: 18 Jun 2008
  • Poruke: 30145

Izgleda je slikan iznad Filipina( visina oko 6 500 m ). Podigli su dezurni par FA-50, nakon 4 minuta je promenio kurs ubrzao na ~ 800 km/h i izasao iz njihovog VAP-a tako da nema slika izbliza.

Citat:The aircraft resembles the one seen in an image taken in California a year ago that is thought to be of the elusive RQ-180 stealth spy aircraft.



https://www.thedrive.com/the-war-zone/42261/myster.....hilippines

offline
  • djox  Male
  • Legendarni građanin
  • Pridružio: 23 Nov 2010
  • Poruke: 96088

Evo ga opet
Secret RQ-180 Stealthy Unmanned Spy Plane Spotted Over Area 51
Arrow https://www.thedrive.com/the-war-zone/42949/secret.....er-area-51

online
  • alchemy
  • Pridružio: 06 Jul 2009
  • Poruke: 4877
  • Gde živiš: Novi Sad

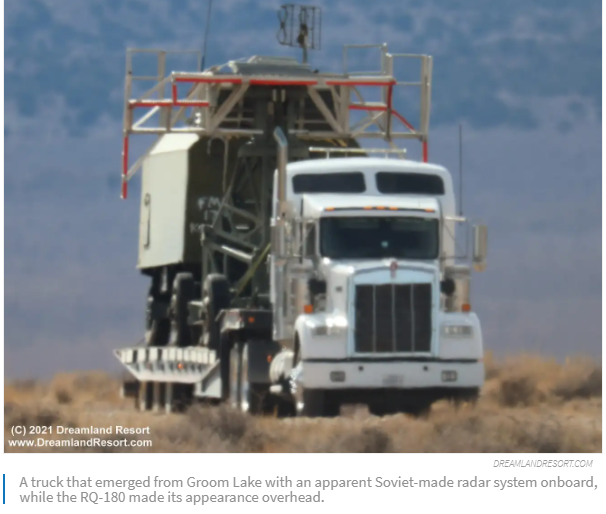

Исечено из чланка који је ђокс поставио.




Траума из 1999. Evil or Very Mad Ако га П-18 не види - нико га не види Smile

offline
  • Toni  Male
  • SuperModerator
  • Pridružio: 18 Jun 2008
  • Poruke: 30145

Secret RQ-180 "White Bat" Spy Drone Alluded To In New Air Force Video



Citat:
"The days of balloons and biplanes have been replaced by white bats..." At this point, it cuts to a planform image of a stealthy flying-wing HALE drone—one of the semi-cranked-kite designs we have seen in HALE sensor craft studies that emerged in the 2000s and similar to notional art posted by Aviation Week when covering the clandestine RQ-180 program (keep in mind we still do not know its real designation).


https://www.thedrive.com/the-war-zone/43191/air-fo.....-new-video
