Iranske bespilotne letelice

18

Iranske bespilotne letelice

offline
  • RJ
  • SuperModerator
  • Gavrilo Milentijević
  • Komandir stanice milicije Gornje Polje
  • Pridružio: 12 Feb 2005
  • Poruke: 35720
  • Gde živiš: ovalni kabinet





Registruj se da bi učestvovao u diskusiji. Registrovanim korisnicima se NE prikazuju reklame unutar poruka.
offline
  • Pridružio: 30 Mar 2011
  • Poruke: 2684

Rezultati istrage vezano za Rotax motore. Jedan iz Slovačke stigao u Iran.
Arrow https://www.rts.rs/page/stories/ci/story/3395/rat-.....juni-.html



offline
  • Pridružio: 02 Jun 2021
  • Poruke: 1246

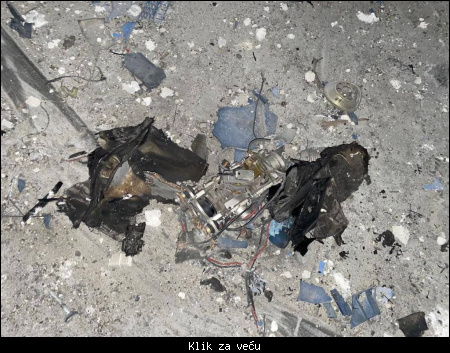

Остаци "Герань-2" (Шехида-136" на месту удара у Дњепропетровску.

https://t.me/milinfolive/93089

offline
  • djox  Male
  • Legendarni građanin
  • Pridružio: 23 Nov 2010
  • Poruke: 97340

Ukri pronasli zapadnu elektroniku u Mohajer-6

Citat:Ukraine managed to land an Iranian Mohajer6 drone used by Russia.
They found majority of parts originate in the West.
They found lens used in its high-res infrared cam that appear identical to a model made by an Israeli firm, Ophir Optronics

Arrow https://www.wsj.com/articles/ukrainian-analysis-id.....1668575332
Arrow https://twitter.com/avischarf/status/1592874528337989632/photo/1

offline
  • djox  Male
  • Legendarni građanin
  • Pridružio: 23 Nov 2010
  • Poruke: 97340

^^Izraelci sproveli istragu
Iran drones said to contain many Western-made parts, possibly Israeli lenses too
Citat:Report cites documents by Ukrainian experts who studied downed Iranian UAVs and concluded 75% of components are US-made, despite vigorous sanctions regime
https://www.timesofisrael.com/iran-drones-said-to-.....enses-too/

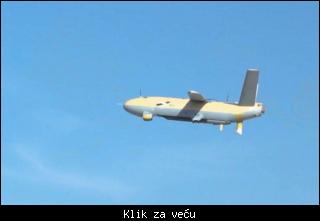

Shahed-133

Citat:Iran has demonstrated a new drone Shahed-133.
It was designed and built on the basis of the Israeli UAV Hermes-200

offline
  • djox  Male
  • Legendarni građanin
  • Pridružio: 23 Nov 2010
  • Poruke: 97340

Citat:Iran agrees to launch a combat UAV production line inside Russia
Arrow https://www.washingtonpost.com/national-security/2.....cret-deal/

offline
  • Pridružio: 08 Avg 2019
  • Poruke: 5555

Šta će im sad ta 133ojka?

offline
  • Pridružio: 13 Jan 2012
  • Poruke: 2324

Pregledali ljudi dronove, i nasli veliku kolicinu zapadnih komponenata.

Dissecting Iranian drones employed by Russia in Ukraine

Ukraine field dispatch, November 2022

Conflict Armament Research

Between 2 and 5 November 2022, a CAR field investigation team physically documented one Shahed-131 (marked 'ГЕРАНЬ-1') UAV, two Shahed-136 (marked 'ГЕРАНЬ-2') UAVs , and one Mohajer-6 UAV.
Investigators also documented one Qaem-5 precision guided munition that bears markings showing that it was manufactured in May 2022.
Iranian UAVs used by Russian forces in Ukraine include many recently manufactured components produced by companies mostly based in the United States.
CAR’s analysis reveals that each of these documented UAVs, as well as the precision-guided munition, is made almost exclusively of components produced by companies based in Asia, Europe, and the United States. CAR documented more than 500 components spanning some 200 unique models across the four UAVs (495 total) and the Qaem-5 (23). More than 70 manufacturers based in 13 different countries and territories produced these components

ceo tekst:
https://storymaps.arcgis.com/stories/7a394153c87947d8a602c3927609f572

offline
  • Pridružio: 08 Avg 2019
  • Poruke: 5555

Bojeva glava Šaheda 131

https://t.me/UAVDEV/1042

https://t.me/UAVDEV/1041

offline
  • Pridružio: 13 Jan 2012
  • Poruke: 2324

^
Multipurpose Iranian drone warheads used in Ukraine
In January 2023, a CAR field investigation team documented the warhead of an Iranian Shahed-131 single-use UAV. This is the first time that analysis of these warheads has been released in the public domain. CAR’s analysis shows that this multipurpose warhead was designed to ensure maximum damage to targets such as critical infrastructure, while also having a significant impact on the ability to undertake quick repair efforts.



CAR documented a number of notable
features:

The warhead is a cylinder approx-
imately 50 cm long and 16 cm wide.
The forward section of the warhead
includes a primary shaped charge.

There are 18 smaller shaped charges
around the circumference of the
warhead to generate a secondary
radial anti-armour effect.

The rear section features a fuze well
for a safety and arming device
the safety and arming
device also contains a detonator.

There are two pre-serrated
fragmentation matrixes, each made
of 11 layers of fragmentation cubes,
around the forward and rear
sections of the warhead;
these matrixes are designed to
generate an additional radial
fragmentation effect for soft-skin
targets


Ima dosta slika kako to sve izgleda

https://storymaps.arcgis.com/stories/f5070c1d8ff8451c9a99138a3b70232d
