Ako postoji zakošenje onda je sa frekvencijskom promenom a ne faznom.



Registruj se da bi učestvovao u diskusiji. Registrovanim korisnicima se NE prikazuju reklame unutar poruka.
offline
  • Pridružio: 26 Jun 2019
  • Poruke: 3154



offline
  • Pridružio: 26 Nov 2017
  • Poruke: 795

Ova serija AD-40/75/200 kao da je koncipirana da bude zamena za Kub, Hawk i S-200, da ih polako salju u rezervu.

offline
  • Pridružio: 26 Jun 2019
  • Poruke: 3154

DEZFUL, iranska modifikacija TOR-M1. Mislim da su ga samo prepakovali na kamion, radi bolje mobilnosti:

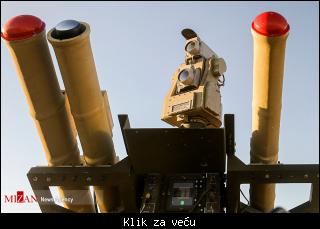

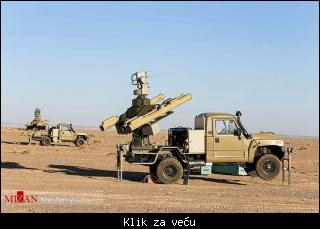

I jos malo novog MAJID-a:

offline
  • Pridružio: 26 Jun 2019
  • Poruke: 3154

Novi iranski PVO sistem dobio je oznaku ZUBIN.
Kazu da ima domet do 25km, ali jos uvek nisu objavljene zvanicne informacije.

offline
  • Toni  Male
  • SuperModerator
  • Pridružio: 18 Jun 2008
  • Poruke: 31184

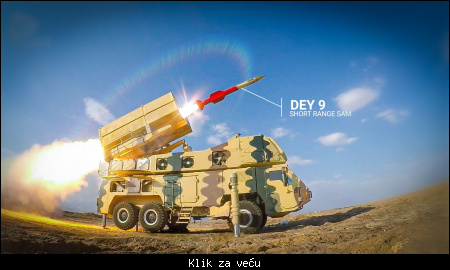

https://twitter.com/projectmeshkat/status/1455603111397969920

offline
  • Pridružio: 26 Jun 2019
  • Poruke: 3154

Podaci o MAJID AD-08 na ArmyRecognition:
https://www.armyrecognition.com/defense_news_janua.....ystem.html

Citat: The missile used by the AD-08 Majid air defense system is equipped with passive imaging infrared (IIR) homing guidance system. It can hit targets with a range from 700 m to 8 km with an altitude from 20 m to 6 km. The missile has a diameter of 156mm, a length of 2,670 mm, and a total weight of 75 kg.

offline
  • Pridružio: 17 Maj 2019
  • Poruke: 1892

Zoobin, domet 30 km, istovremeno dejstvo na 8 ciljeva do 20km.


offline
  • Toni  Male
  • SuperModerator
  • Pridružio: 18 Jun 2008
  • Poruke: 31184



Citat:According to the scale models of AD-200 displayed at DIMDEX 2022, a battery of AD-200 includes up to six TEL (Transporter Erector Launcher) each with a launcher unit with four ready-to-fire missiles, AD-200 CC Combat Control Post, AD-200 SR Search Radar, and AD-200 TR Target Tracking Radar.

The AD-200 is an air defense missile system designed to intercept aerial targets at long-range and long-altitude. The air defense system is able to be used in all-weather conditions and can engage simultaneously six targets with 12 missiles. The AD-200 missile can destroy a wide range of aerial targets such as aircraft, helicopters, UAVs (Unmanned Aerial Vehicles), and cruise missiles.

Citing the technical features published on the Iranian weapons export catalog, the missile can destroy aerial targets with a range from 5 to 200 km and an altitude from 200 m to 27 km. The missile has a diameter of 515 mm, a total weight of 2,050 kg with a warhead of 180 kg. The missile has an inertial guidance system updated via data link semi-active and active radar homing.

The AD-200 SR Search and surveillance phased-array radar is able to acquire and detect targets at a maximum range of 320 km with an azimuth of 360° and elevation from -3° to +85°. It can detect 200 targets simultaneously.

The AD-200 TR Target Tracking Phased-array Radar is able to track targets at a maximum range of 260 km with an azimuth of 360° and elevation from -3° to +85°. It can track 6 targets simultaneously.


https://www.armyrecognition.com/defense_news_march.....qatar.html

online
  • Pridružio: 08 Avg 2019
  • Poruke: 6034

Jel to neka izvozna verzija Bavara 373 ili?
