Sistemi za borbu protiv bespilotnih letelica (C-UAV)

• 1Ovo se svidja korisniku: djox

  Registruj se da bi pohvalio/la poruku!

Holzeri, ne Kenguri

• 2Ovo se svidja korisnicima: S-lash, nemkea71

  Registruj se da bi pohvalio/la poruku!

^^Tako je...jbg..zurba

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Uloguj se preko Facebooka da bi video sliku:

[Link mogu videti samo ulogovani korisnici]

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Uloguj se preko Facebooka da bi video sliku:

^^Nastavak


Citat:Russian soldiers with ZALA AERO REX-2

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Uloguj se preko Facebooka da bi video sliku:

Kambodza pazarila od singapurcana Orion-7

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Uloguj se preko Facebooka da bi video sliku:

Ukri dobili od litvanaca EDM4S Sky Wiper

Citat:Ukranian soldiers with the Lithuanian donated anti-drone jammer EDM4S "Sky Wiper".

It's a wideband jammer, with the ability to jam commercial drone signal frequencies like 2.4/5.8 GHz, while also having the capability to hit common mil frequencies like 1.5/10 GHz GLONASS/GPS and 433/900 MHz SATCOM.
It can target both commercially available quadcopters and larger military drones like the Orlan-10



Citat:The company also sells an associated system called the NST-DDS, which acts as an ELINT system to detect drone signals and warn operators.

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Izraelska kompanija predstavila nov sistem

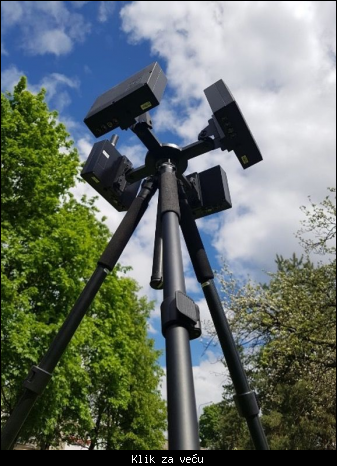

Netline unveils new generation DroneNet RD sensor – a tactical, multi-layered counter-drone defense system with Direction Finding (DF) capability at all frequency ranges
Citat:The compact system, which is capable of ultra-fast deployment by a small tactical team, can be operated directly both from the control station and remotely, thus enabling full force protection.

The DroneNet’s comprehensive protective offering consists of three defense layers, operating sequentially in real time and activated automatically upon threat detection. Each layer is capable of operating as a stand-alone system and interfacing with other defense systems.
During the detection phase, DroneNet searches for activity patterns corresponding to the stored signatures in the 400MHz, 800/900MHz, 2.4GHz and 5.8GHz bands. Once a match is found, the C4I console issues an alert that a drone has been detected, including its type, enabling a finely-tuned and timely response for mitigation. The system also includes a Wi-Fi drone sensor, enabling detection of all commercial Wi-Fi drones available today.
DroneNet’s near-zero false-alarm rate is achieved using an SDR SIGINT receiver, which identifies the hostile drone’s spectral signature, regardless of its protocol data or any encryption employed.
Upon detection, Netline’s DroneNet RD jammer blocks all potential frequencies used by commercial drones. By enabling jamming of the control and telemetry channel, video downlink transmission and all GNSS signals, the DroneNet RD jammer enables the user to achieve the desired effect for different threat scenarios.
[Link mogu videti samo ulogovani korisnici]

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Uloguj se preko Facebooka da bi video sliku:

Nemci predstavljaju nov sistem
MBDA unveils Sky Warden NNbS new anti-unmanned air systems
[Link mogu videti samo ulogovani korisnici]

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Uloguj se preko Facebooka da bi video sliku:

Neka africka zemlja pazarila je sistem Sky Wolf...nagadjanja su da je Egipat u pitanju

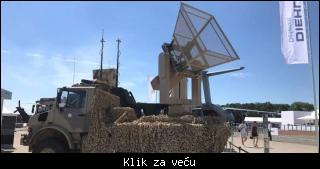

Diehl Defence exports HPEM SkyWolf to African customer
Citat:Diehl Defence has been awarded a contract for the delivery of the HPEM (High-Power Electromagnetic) SkyWolf counter-small-unmanned aerial vehicle (UAV) system by an undisclosed customer in Africa.
The HPEM SkyWolf consists of a pulsed high-power radio-frequency (RF) effector combined with a barrage jammer system, and is capable of variable defeat modes against small UAVs depending on the range at which it is employed. The system can be integrated with a variety of user-defined sensors to locate targets. Typical options include automatic target recognition-enabled day cameras, IR sights, direction-finders, or radars.
[Link mogu videti samo ulogovani korisnici]
[Link mogu videti samo ulogovani korisnici]


Citat:Diehl Defense has been awarded a contract to export the High Power Electromagnetic (HPEM) Skywolf counter-UAV system to an undisclosed African customer

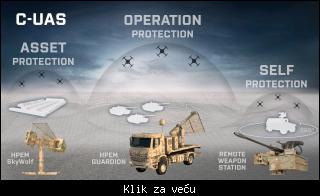

The Skywolf C-UAS system has been showcased recently in a combined configuration with the IRIS-T GBAD.

• 0Niko još nije pohvalio poruku.
  Registruj se da bi pohvalio/la poruku!

Uloguj se preko Facebooka da bi video sliku:

Rusi

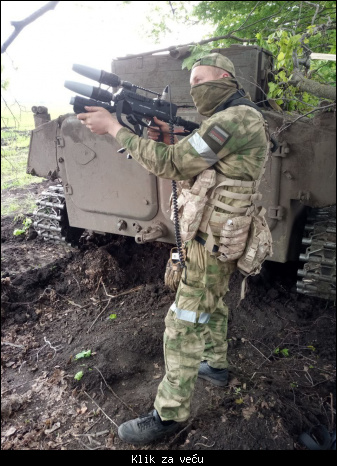

Citat:Russian LPD-801 anti-drone rifle being tested.
It's designed to suppress communication channels and data transmission from drones, as well as the navigation system.
