Poslao: 05 Nov 2018 14:57
Idi na vrh
offline
  • d.ing Metalurgije
  • Pridružio: 21 Jan 2010
  • Poruke: 3782
  • Gde živiš: Makedonija

[quote="aramis s"]Jedan od prikazanih.


Izgleda predobro.



Registruj se da bi učestvovao u diskusiji. Registrovanim korisnicima se NE prikazuju reklame unutar poruka.
Poslao: 06 Nov 2018 07:09
Idi na vrh
online
  • član biblioteke
  • Pridružio: 18 Jul 2007
  • Poruke: 29248
  • Gde živiš: iznad smoga Beograda

Osnovni podaci o radaru




Poslao: 06 Nov 2018 12:28
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 112583


Citat:The side-looking array of KLJ-7A airborne AESA radar has near 600 T/R modules, in comparison, Su-57's side-looking N036B-1-01 X-band AESA radars has 358 T/R modules.

Poslao: 06 Nov 2018 12:30
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 112583

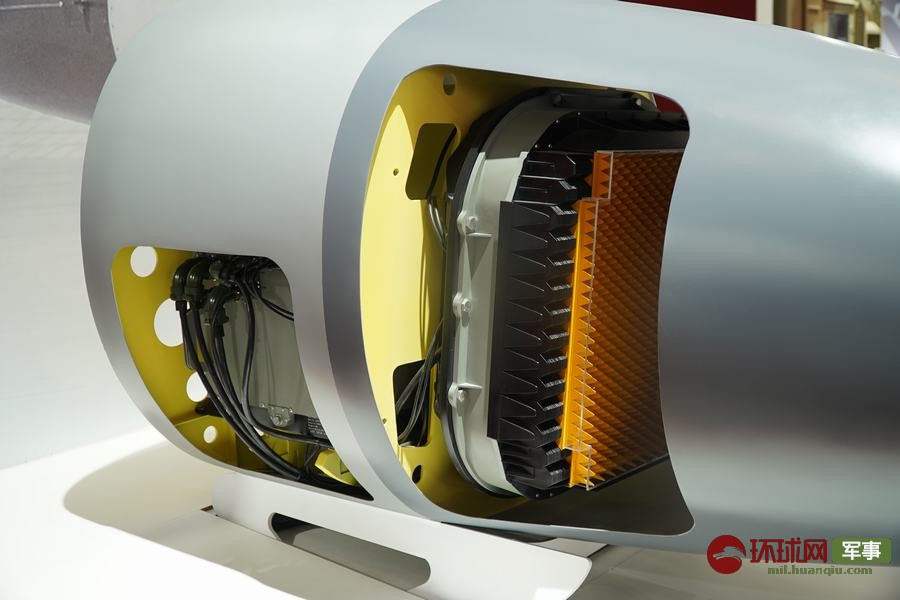

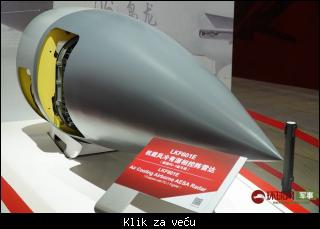

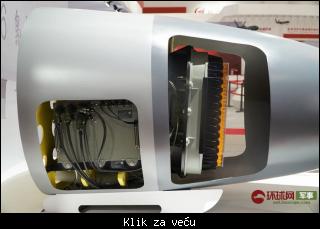

Citat:LKF601E air cooling airborne AESA radar
[Link mogu videti samo ulogovani korisnici]



Citat:In-situ replacement.

Poslao: 09 Nov 2018 09:43
Idi na vrh
offline
  • zixo  Male
  • Legendarni građanin
  • Pridružio: 27 Sep 2006
  • Poruke: 23216
  • Gde živiš: Beograd

В Китае заявлено о создании первой в мире авиационной РЛС с АФАР с воздушным охлаждением

[Link mogu videti samo ulogovani korisnici]

Poslao: 10 Nov 2018 16:49
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 112583

KLJ-7A 3-aerial AESA radar has 300° FOV
Citat:China Electronics Technology Company’s (CETC) No. 14 Research Institute said in a press statement on Nov. 9 that its KLJ-7A 3-aerial AESA fire control radar has a 300° field of view (FOV).
This allows the fighter to act as an airborne early warning platform as well.
[Link mogu videti samo ulogovani korisnici]

Poslao: 11 Nov 2018 12:54
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 112583


Citat:Two variants of KLJ-7A AESA confirmed.
One has 1 single nose array mounted on a mechanically steered mount to provide greater field of regard similar to CAPTOR-E/Raven ES-05/Vixen 1000E.
The other has 3 arrays (1 nose+2 side, all fixed) with a cross section suggestive of chines

Poslao: 10 Dec 2018 22:20
Idi na vrh
offline
  • Pridružio: 30 Jun 2007
  • Poruke: 6361
  • Gde živiš: Novi Sad, severoistočna Srbija

Citat:"Некоторые заказчики МиГ-29 хотят видеть данную станцию на самолете, российские военные также намерены оснастить ей истребитель МиГ-35. Как только РЛС пройдет испытания, будет финансирование и контракт. Предполагается, что весь процесс завершится примерно в течение двух лет — мы изготовим около четырех образцов, поставим на самолет и проведем испытания", — сообщил источник ТАСС на выставке. По его словам, стартовым заказчиком, вероятно, выступит иностранный эксплуатант МиГ-29. Новая РЛС с АФАР для истребителей семейства МиГ-29/35 получила название "Жук-АМ".

[Link mogu videti samo ulogovani korisnici]

Poslao: 10 Dec 2018 22:43
Idi na vrh
offline
  • Pridružio: 21 Jul 2008
  • Poruke: 10456

sasans23 ::Citat:. По его словам, стартовым заказчиком, вероятно, выступит иностранный эксплуатант МиГ-29. Новая РЛС с АФАР для истребителей семейства МиГ-29/35 получила название "Жук-АМ".

[Link mogu videti samo ulogovani korisnici]

Zanimljivo Smile

Poslao: 20 Mar 2019 23:39
Idi na vrh
offline
  • Pridružio: 23 Nov 2010
  • Poruke: 112583

Novi
Thales Develops New 4D AESA Radar
Citat:Thales has developed a new radar named “Ground Master 200 Multi Mission” to the family of 4D Active Electronically Scanned Array (AESA) radars.
According to the company, the Ground Master 200 establishes tracks faster and keeps them locked for longer, thus maximising time on target. This gives units the time to evaluate the threat and take appropriate action.
It includes Thales’s scalable and upgradable antenna architecture and software defined radar technology that offers upgrade capacity over the whole life cycle. It also features “dual-axis multi-beam”, which gives unrestricted steering flexibility in elevation and bearing, the company said in a statement.
The system will be offered in two versions, an “all in one” for air surveillance and ground based air defense up to medium range, and a “compact” version scalable to specific missions like artillery Counter Battery and Weapon Locating. Both are in advanced stage of development with first serial unit deliveries expected in 2021.
Arrow [Link mogu videti samo ulogovani korisnici]
