Tema je otvorena kao vapaj na teme tipa šta sve možeš sa milijardama dolara i sklopi idealnu vojsku. Posvećena je svim onim rešenjima koja se stidljivo pojavljuju i nude neku mogućnost da čitave jedinice ne budu beznadežno prevaziđene u beznadežnim okolnostima.

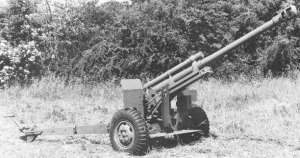

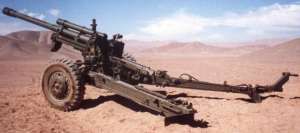

Britansko - holandska modernizacija haubica M101 105mm iz tridesetih. Modernizacija je omogućila korištenje modernije municije uz povećanje dometa i efikasnosti. Izvedena je uz maksimalnu upotrebu postojećih elemenata, a glavna modifikacija bila je nova cijev 105mm 33 kalibra uz određene promjene i ojačanja pratećih elemenata. Krajem devedesetih projekat je usvojen od Kanade (132 komada) i Čilea (12 komada). Osim cijevi 105mm/33 kalibra nuđene su i 105mm/30, 105mm/37 kalibara. Omogućeno je korištenje svih postojećih i budućih tipova klasične i gasogeneratorske municije.


MOBAT - M101 105mm/33 na DAFu 4x4.
Weapon elevation is all-electric using joystick control with traverse limits being 45º left and right. An auxiliary power unit is fitted as standard to keep the batteries charged. Elevation range is from -90 to +1,260 mils with traverse being 800 mils left and right. A burst rate of fire of 8 rds/min can be obtained while a sustained rate of fire of 5 rds/min can be achieved.
A total of 40 105 mm projectiles and associated charges are carried with these being stowed to the immediate rear of the cab under cover.
The baseline MOBAT has a standard gun sight but options include the integration of an automatic gunlaying and navigation system coupled with an onboard computerised fire-control system.
For the Far East trials, MOBAT was fitted with the BAE Systems Laser Inertial Pointing System (LINAPS) of which 137 have now been supplied for installation on the BAE Systems Land Systems 105 mm Light Guns of the Royal Artillery.
LINAPS provides the precise location of the MOBAT with a route navigation capability and also provides the gun crew with orientation and location data without the requirement for the standard sighting system.




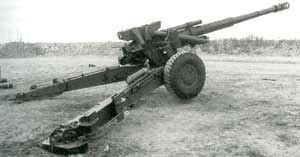

Modernizacija haubice M114/39 iz osamdesetih. Sistem je usvojen od Holandije, Danske i Norveške, a ispitivan je i u Kanadi i Brazilu. The M114/39 calibre modification is accomplished using the maximum number of existing gun parts and new components only where necessary. The major change involves a new 155 mm 39 calibre barrel with a larger chamber, increased twist rifling and a muzzle brake which makes the weapon, with current projectiles and charges, baiiisticaliy similar to the US 155 mm M109A2 self-propelled and US 155 mm M198 towed howitzers.
RDM Technology has developed a VW air-cooled diesel auxiliary power unit that can be installed on the forward part of the carriage. This develops 60 hp and enables the M139and M114/39 to move around under their own power at 10 km/h. This APU remains at the prototype stage.




M 46/84 Yugoimport SDPR.
The 155 mm Gun M46/84 is a conversion of the Russian 130 mm Gun M-46 (or the Chinese North Industries Corporation Type 59-1) to accommodate a new 155 mm 45 calibre barrel capable of firing Extended Range Full Bore - Base Bleed ammunition of the separate loading type (projectile and charge).
This conversion gives a range increase of 45 per cent over the original 130 mm M-46 when firing ERFB-BB ammunition. The efficiency of the 155 mm ERFB projectile is claimed to be about three times that of the older Russian-designed 130 mm OF-482 projectile.
The converted gun could also be delivered in 152 mm calibre with this model being designated the cal. 152 M46/86. It uses the same system of propelling charges and Serbia projectiles M84 and M84-GG. Maximum range with the M84 projectile is 27,500 m and with the M84-GG base bleed it is 34,000 m. The 152 mm model also has a 45 calibre barrel.


Elbitova modernizacija vremešnijih PORVa.
Elop’s new clip-on solution overcomes environmental and visibility limitations, using a 3-5µm thermal imager that provides optimal imaging 24/7.

A-TIM – Advanced Clip-on Thermal Imaging Sight for ATGM Launchers
Uses existing eyepiece for both standard and thermal sight

TAFS – Target acquisition unit clip on ATGM
Links Targeting & Firing Team - a complete solution for target acquisition and upgrade of firing effectiveness by incorporating: GPS, digital compass, LRF and tilt sensors.
Common battlefield language – enables identification of every target as absolute coordinates

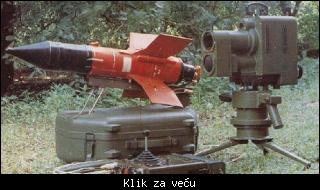

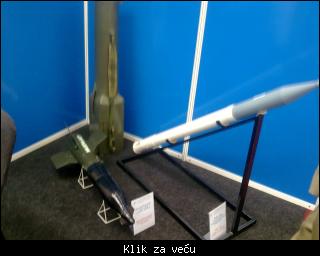

Maliutka M2T, rumunski projekat sa poboljšanim raketnim motorom i tandem kumulativnom bojevom glavom od Milan 2T POLKa.


Yugoimportove Maljutke


Poboljšani sistem za vođenje uz veću otpornost na smetnje - Kina.

Dopuna: 05 Okt 2014 18:02

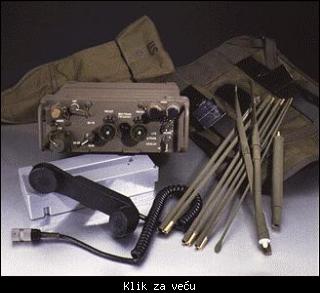

AN/PRC-1177 Tactical Radio Set

NEW ELECTRONIC DESIGN
EFFICIENT ELECTRONIC CONVERSION TO
25 KHz SPACING - 1840 CHANNELS

The worldwide increasing application of wireless communication technique necessitated an increasing of the operating channels available with the radio sets in use.

· Associated Industries has developed a very decisive modification to the PRC-77 resulting with the PRC-1177. Two advantages of the PRC-77 design for the basis of this modification are the rugged design and selective tuning via the variable tuning capacitors through which a high special purity of the transceiver can be gained.

· Associated Industries utilizes the 25 KHz sector arm modification that is installed in the front panel gearing mechanism. This type of modification allows the same type "user friendly" features of the PRC-77 which has a proven track record.

The module A40 is replaced with the module A40/AS that contains a different switch on the A40-1 board and an additional two reference crystal oscillators (5.625 and 5.675 MHz). In the receiver path, the IF- Crystal filter with its + 16 KHz bandwidth is exchanged for a crystal filter with + 8.5 KHz bandwidth.

In addition there is a slight modification to the A22 module creating the A22/AS which allows the decrease in nominal FM deviation to 6 KHz and the 150 Hz tone signaling is set to 2.0 Hz deviation.

The AN/PRC-1177 modification is a very simple and low priced solution permitting the adaptation of inventories to the more modern tactical requirements.













DEUTSCHE ELNO - VHF radio set PRC-77A/25 GY (RT-841A/25) is a modified form of the PRC-77 (RT-841).
It offers a channel spacing of 25kHz, and has a digital synthesiser.
This enables 1840 instead of 920 speech channels.
The cost of maintenance and repairs is also significantly reduced, while service life is increased.

Upon request, existing radio sets from the model PRC-77 (RT-841) can be up-graded.

Dopuna: 05 Okt 2014 20:55











Soltamova modernizacija topova M 46.

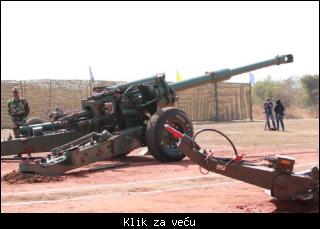

The upgraded M-46 is fitted with a monobloc autofrettaged 155 mm barrel 45 calibres long that incorporates a horizontal sliding breech block which is automatically operated. It uses standard M82 primers that are automatically ejected after firing.
The complete weapon system can be divided into two major subassemblies: the ordnance and the carriage.
Whereas the carriage, understructure and recoil mechanism remain unchanged, the ordnance is completely replaced by the new 155 mm 45 calibre barrel assembly that together with the pneumatic ramming device comprises the conversion kit.
The aiming and sighting systems can be brought up to NATO standards as an option and a modern inertial aiming device can also be fitted.
The 155 mm conversion kit comprises the 45 calibre ordnance consisting of the barrel, breech ring assembly, breech block assembly, automatic breech block operating mechanism, new single-baffle muzzle brake, fume extractor and cradle adaptors with the loader assist device and its associated installation.

According to Soltam, the upgraded weapon has a number of unique features:

(1) firing cannot commence unless the breech block is completely closed and locked

(2) the horizontal breech mechanism, operated together with the pneumatic ramming device, enables a high rate of accurate fire to be achieved without the need to lower the ordnance for loading

(3) the gun crew area is clear of the overpressure effects and residual post-firing gases due to the efficient muzzle brake and bore evacuator.

The Soltam upgraded M-46 gun can fire all of the standard 155 mm types of ammunition in worldwide use starting with the M107 family of ammunition and ending with the more recent 155 mm ERFB-BB family of long-range ammunition.

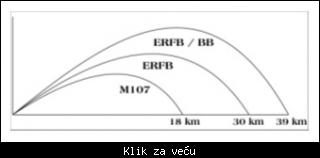

With unassisted ammunition, ranges of up to 30,000 m can be achieved and with assisted ammunition, ranges of up to 39,000 mean be achieved.











This is the US M-114 155mm howitzer, updated by Soltam, as these howitzers were left over from World War 2. Key improvements include replacement of the barrel and muzzle brake, addition of a pneumatic rammer driven by an air compressor, new elevation, traverse, and mount, and a telescopic sight for direct firing (+1). The crew requirements are also reduced. Crew of 6 people can operate the system.

This most cost-effective Upgrading Project of the American M114, provides 50% range increase by replacing only the 23 caliber tube with a new unique design, 33 cal. one and equipping it with a high efficiency muzzle brake. Increasing max. range from 14.3 km to 22.5 km

This most cost-effective Upgrading Project of the American M114, provides 50% range increase by replacing only the 23 caliber tube with a new unique design, 33 cal. one and equipping it with a high efficiency muzzle brake. Increasing max. range from 14.3 km to 22.5 km.

The 155 mm/33 calibre version does not require such extensive modifications to the existing weapon when compared to the other 155 mm/39 calibre modernisation packages and, according to Soltam Systems, it is a more cost-effective solution.

The new 155 mm/33 calibre barrel has a high-efficiency muzzle brake and is fitted with the original breech ring and breech mechanism of the M114. The new ordnance has a constant 1:20 twist rifling with 48 lands and grooves. The muzzle brake is the same as that fitted to other Soltam Systems 155 mm towed artillery systems.

The conversion kit includes the following:
155 mm/33 calibre tube and muzzle brake
Pneumatic ramming system and its installation (the pneumatic cylinder is located on the right trail leg)
Mounts and fixtures kit
Direct firing telescope as an option
Upgrading instruction and technical data pack

Dopuna: 05 Okt 2014 22:08





Yak-52B-light plane, Yakovlev established on the basis of the education Yak-52 aircraft. The experience of the war in Afghanistan pointed to the need for combat operations in light attack aircraft guerrilla movements. One of the projects was the establishment of such an yakovlevsky Yak-52B (scheduled in the case of production assign it a symbol Yak-54). The reference was made cheap and reliable Yak-52 UTS. The aircraft made two pylon with a hung UB-32 blocks. The aircraft had strengthened wings.

Dopuna: 06 Okt 2014 16:52







As a result of the effectiveness of the Russian-supplied towed 130 mm Field Gun M-46 in the Indo-Pakistan conflicts, the Indian Army mounted some on Vijayanta tank chassis (originally the Vickers MBT). The conversion is now in Indian Army service, which originally had a fleet of about 2,200 Vijayanta MBTs and about 750 130 mm M-46 guns. The Vijayanta tank has now started to be phased out of Indian Army service.

The 130 mm gun has a range of 27,150 m and fires an HE projectile weighing 33.4 kg with a muzzle velocity of 930 m/s. It can also fire an APHE projectile weighing 33.6 kg, also at a muzzle velocity of 930 m/s, which can penetrate 230 mm of conventional steel armour at an incidence of 0° at a range of 1,000 m.

It would appear that the Vijayanta/130 mm M-46 combination can carry 30 rounds of separate loading ammunition. It is known to the Indian Army as 'Catapult'.

The latest information available indicates that a total of 170 Catapult systems were built of which 100 are operational and the remainder are in reserve. Some have recently been observed fitted with a horizontal shield over the gun and crew compartments to provide protection against top attack weapons. Some sources have quoted a much lower figure of only 20 mm Catapult 130 mm self-propelled artillery systems in service. It is also reported that India has a small quantity of Russian 152 mm 2S19 self-propelled artillery systems in service.

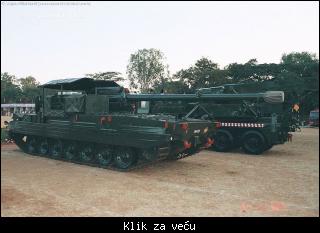

Rebirth of Catapult artillery system with Arjun Chassis

In unusual twist of events and as per latest media reports, Indian Army plans to bring back M46 howitzers mounted on Vijayanta tank chassis (originally the Vickers MBT) back to life. Indian army will soon place orders for 40 Arjun chassis to be used for mounting Soviet era M46 Howitzers.

‘Bhim’ self-propelled howitzer project which was supposed to replace Catapult system before it was shelved after supplier of 155mm / L52 howitzer guns by Denel of South Africa was blacklisted by Indian government . Project went cold and find for replacement Gun to be mounted on Arjun chassis not yet been successfully, Bhim was successfully tested by Indian army and was cleared for Production before the project went cold due to blacklisting.

After success with M-46 guns in 1971 war with Pakistan , Indian army had used soviet union supplied towed 130 mm Field Gun M-46 and mounted it with Vijayanta tank chassis and was known has Catapult artillery system which served in Indian army till 2008 before it was put in reserve .

According to Military experts India had put into reserve around 100 Catapult artillery systems most of the guns will come from here, but before it is mounted on Arjun chassis, Guns will be upgraded to 155mm 52 calibre standard by OFB and then DRDO will integrate it with Arjun chassis.

Initial order of 40 can go up if Army is satisfied with the Final Product and Indian army can procure more of these guns from old soviet bloc countries, Indian army had a requirement of 200 mounted howitzers on Arjun chassis for the Bhim Project.

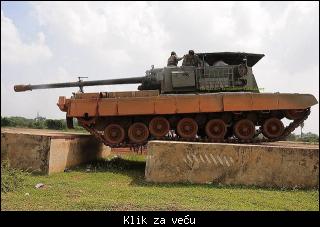

Arjun Catapult artillery system is a Self propelled Gun, The System compromise of 130mm M46 field gun mounted over Arjun MK-1 Chassis

Specifications :

Weight :44.5 tonnes
Caliber : 130 mm
Breech : Horizontal sliding wedge
Elevation :-2.5° to 45°
Maximum Gun range : 40km
Rate of fire : 6 (normal) 8 (burst) 5 (sustained)
Engine : MTU 838 Ka 501 diesel 1,400 hp (1,040 kW)
Transmission : Renk epicyclic train gearbox, 4 fwd + 2 rev gears
Suspension :hydropneumatic
Ground clearance : 0.45 metres (1 ft 6 in)
Fuel capacity : 1,610 litres (350 imp gal; 430 US gal)
Operational range : 450 kilometres (280 mi)[7]
Speed : 72 km/h (45 mph) Road or 40 km/h (25 mph) Cross country

Feasibility study of mounting 130 mm Catapult Gun on Arjun Chassis Mk-I was carried out in May- June 2012. The technical study concluded that upgradation of the existing Catapult on the chassis could be carried out in a very short time and the equipment capabilities increased.

A date in the month of November, 2012 was fixed by the DG (artillery) for the first field trial. The CVRDE, Avadi, took up the challenge after they were given a spare gun system to mount on the Arjun, Mk I in July, 2012. The trials were held between 27 November to 3 December 2012. The Arjun mounted chassis outmatched Vijayanta by a large margin, also in the test for stability, while firing charged rounds.

The developmental trials were held between 31 July to 13 August, 2013 during the summer. Arjun Catapult was fitted with two sets of Goegraphical Positioning System and one Gyro used in Arjun Mk-I during these trials. Driver’s Night Vision Device (DNS) and Commanders’ night sight (HHTI) were also successfully tested. It was also provided with fire fighting system based on Instant Fire Detection Suppression System as existing in Arjun Mk-I tanks.

The Arjun Catapult was run for about 500 kms during this trial and subjected to maximum intense and sustained firings.

‘The firings and mobility trials were absolutely smooth which gave full confidence to the users as well as the development agency, that the requirement of Arjun Catapult of artillery would soon be a reality. It is expected that the user trials based on General Staff Qualitative Requirement (GSQR) would be held in November-December 2013, and 40 Catapult Guns would be inducted by the army,’ a senior DRDO official stated.

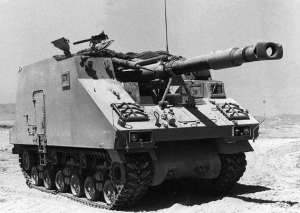

The L33 (the length of the barrel in calibres) 155 mm self-propelled gun-howitzer was developed in the late 1960s by Soltam Systems Limited. It is basically a Sherman M4A3E8 tank chassis, originally designed and built during the Second World War, fitted with a Cummins diesel engine, a new all-welded steel superstructure and a Soltam Systems 155 mm M-68 gun-howitzer taken from the Soltam Systems 155 mm towed system.

Production of the L33 (which has also been referred to as the 155 mm M68 self-propelled gun commenced just after the 1967 war and it was used operationally for the first time during the 1973 Middle East conflict.

No production figures for the Soltam Systems L33 155 mm self-propelled gun-howitzer have been released. It is estimated that between 150 and 200 units were built.

SIBAT, Foreign Defence Assistance and Defence Export, Land Sales Division, at the Israel Ministry of Defence, is now offering quantities of the L33 systems for sale with the standard Soltam Systems 155 mm/33 calibre barrel or fitted with a new 155 mm/39 calibre barrel. As far as it is known, there have been no export sales of the L33 with a 155 mm/39 calibre barrel.

http://www.army-guide.com/eng/product1263.html

Dopuna: 07 Okt 2014 2:45











Vremešni ribarski brodovi španske proizvodnje konvertovani su u najveća plovila - patrolne brodove kubanske mornarice deplasmana oko 2500 tona. Vjeruje se da su operativna dva plovila, fotografisana sa Styx lanserima protivbrodskih raketa montiranih na pramcu, vjerovatno "recikliranih" sa rashodovanih Osa II raketnih čamaca. Brod pokazuje veliku ingenioznost Kubanske mornarice, ali i ilustruje patetično stanje nekadašnje flote okeanskih podmornica i modernih fregata.

Brodovi (7 komada) su u originalu proizvedeni u Španiji po narudžbi kubanske državne kompanije za ribolov u dubokim vodama da bi krajem devedesetih bili transferovani Mornarici gdje su konvertovani i naoružani za ulogu velikog patrolnog broda.

Naoružanje čine dva SS-N-2 “Styx” lansera PB raketa skinuta sa rashodovanih “Osa II” raketnih čamaca, 2M3 dvostruka 25mm topa sa rashodovanih torpednih čamaca, i nešto što bi mogla biti kupola T-54/55 tenka. Nije jasan način upotrebe raketa, pošto iste moraju biti povezane sa radarom prilikom procedure gađanja. Moguće je da su brodovi opremljeni samo sa IC - vođenim varijantama “Styx” raketa, znatno redukovanih karakteristika.

Nije poznato koliko je ribarica prošlo konverziju pošto se sumnja da se jednom brodu mijenjaju registarski brojevi. Od 2012 u brodogradilištu u Havani primjećeni su radovi na drugom brodu.























Kubanska kombinatorika sovjetske gvožđurije.

offline
  • Pridružio: 21 Maj 2008
  • Poruke: 11327

Кљифте,
ово на кубанском патролном броду је вероватно купола са ЗСУ-57-2, са двоцевним топом од 57мм.

offline
  • djboj  Male
  • Super građanin
  • Pridružio: 06 Jul 2010
  • Poruke: 1189

vathra ::Кљифте,
ово на кубанском патролном броду је вероватно купола са ЗСУ-57-2, са двоцевним топом од 57мм.

Изгледа да је тако




Кубинские патрульные корабли типа "La Habana".
В ходе перестройки в патрульный корабль на судне был установлен весьма оригинальный набор вооружения, включающий две пусковые установки старого противокорабельного ракетного комплекса П-20 (П-15У), сняты с одного из списанных ракетных катеров проекта 205ЭР(2), спаренная 57-мм башенная артиллерийская установка, снятая с зенитной самоходной установки ЗСУ-57-2 (1), две спаренные 25-мм артиллерийские установки 2М-3М (4) и две 14,5-мм зенитные пулеметные установки (3). В кормовой части оборудована обширная взлетно-посадочная площадка, способная принимать вертолет Ми-8. Корабль оснащен тремя современными навигационными РЛС, и, предположительно, аппаратурой радиотехнической разведки."

http://doktorkurgan.livejournal.com/27289.html

offline
  • djboj  Male
  • Super građanin
  • Pridružio: 06 Jul 2010
  • Poruke: 1189

Нисам сигуран да ли припада овој теми и да ли је већ било речи о овом пројекту
The low-cost fighters to serve tomorrow’s air forces
http://www.bbc.com/future/story/20140903-low-cost-fighter-jets-take-off
http://en.wikipedia.org/wiki/Textron_AirLand_Scorpion




offline
  • Pridružio: 14 Apr 2014
  • Poruke: 1103

Taj će ti koštati ~ 40 milki....jeftino za USA mejd...Very Happy

offline
  • djboj  Male
  • Super građanin
  • Pridružio: 06 Jul 2010
  • Poruke: 1189

mikrimaus ::Taj će ti koštati ~ 40 milki....jeftino za USA mejd...Very Happy

Зато сам и написао да нисам сигуран Very Happy
Мада тврде да ће плафон бити 20. мил, те да ће покушати да понове успех који су имали са Ф5

offline
  • kljift
  • Legendarni građanin
  • Pridružio: 11 Okt 2009
  • Poruke: 6314

Napisano: 07 Okt 2014 22:07

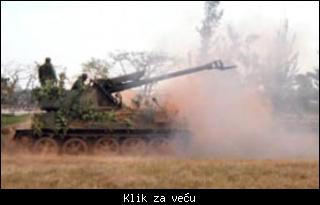

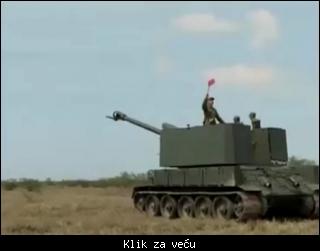

T 34 + 122mm

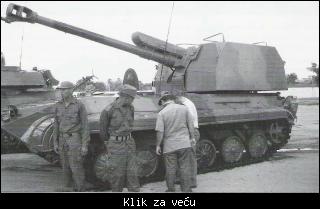

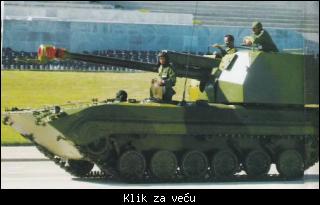

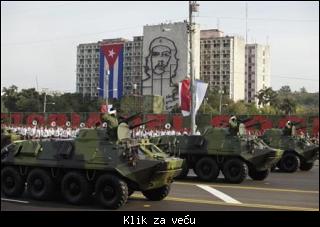

BMP 1 + 122mm

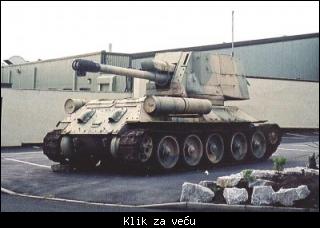

T 34 + KS 19






BRDM 2 + MB 120mm

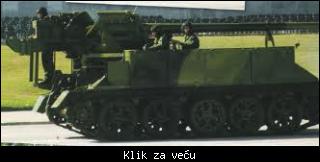

T 34 + 130mm












Dvine i po koja Neva. Izgleda da ne repariraju samo automobile.




Ni Dolčeikebana mu ne bi pozavidio.

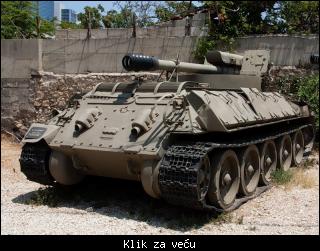

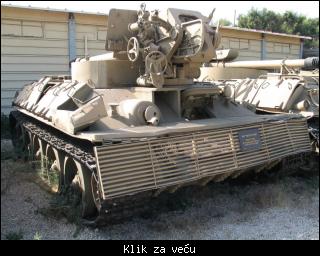

Sirijske T 34 + 122mm


Egipatska




Type 63 - kineska kopija T 34 + 37mm PATovi. Bez hidraulike efikasno je tamburao po zemaljskim ciljevima.

Dopuna: 08 Okt 2014 1:02

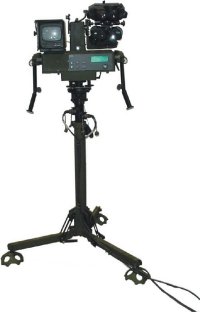

23 ItK 95 - finska modernizacija originalnog 23 ItK 61 sa žirostabilisanim topom, autonomnom pogonskom jedinicom i laserskim daljinomjerom.

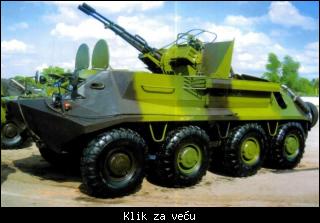

ZU-23M1 podoljskog Specmaša. Raspolaže unaprijeđenim sistemom za upravljanje vatrom uz opciono opremanje sa dva lansera za rakete Igla, obično Igla S.
Komplementarni PVO artiljerijsko - raketni sistem ZU-23/ZOM1 obuhvata raketno - topovski vatreni modul (strelbovoj modul) ZU-23/ZOM1-SM; raketno - lansirni modul (puskovoj modul) ZU-23/ZOM1-PM opremljen sa četiri rakete 9M333 “Strela-10”; modul distancionog upravljanja ZU-23/ZOM1-MU i portabl generator AB 1. Konfiguracija i broj modula zavisi od želja klijenata.

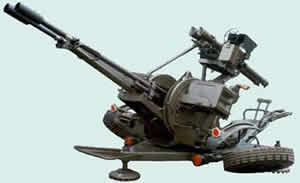

ZUR-23-2KG "Jodek-G" - napredni refleksni nišan, kasnije dnevno - noćni nišan sa laserskim daljinomjerom, elektromehaničkim pokretačem i dvostrukim lanserom GROM raketa.








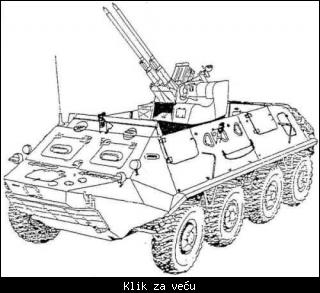

2004 počeo je rad na rusko - slovačko - češkom projektu modernizacije popularnih PATova ZU 23 - 2 za potrebe izvoza u treće zemlje (preciznije zemlje Trećeg svijeta). Cilj modernizacije je u značajnom povećanju efikasnosti pri gađanju pokretnih meta, redukovanje članova posade i mogućnost korištenja novih tipova municije.


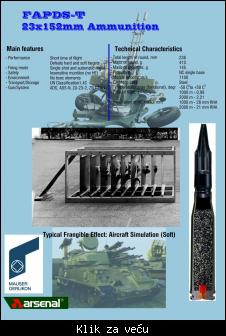

Municija iz bugarskog Arsenala

Specifikacije:
- zadržavanje originalnih nišana ZAP-23 i ručnog upravljanja
- montiranje modernizacijskih sklopova u terenskim uslovima
- cijena modernizacijskih sklopova mora biti značajno niža od cijena kod finske Patrije i ruskog ZU-32-2 M, M1 od Nudelmana

Od 2008 projekat ZU-23-2 M2 "Vlára" razvija se bez ruskog partnera. Sledeće godine, funkcionalni primjerak uspješno je kompletiran sa finalom u gađanju na poligonu u Zahorju.

Sistem za upravljanje vatrom obuhvata dvije odvojene grupe:

Electric Actuators Can
-Digital alternating electric actuators can třífázovými engines and mikroprocesorovými regulators with the functions of the current recovery, speed 80 °/s in azimuth and 60 °/s in elevation, measuring 10 mikrorad, the accuracy of the positioning of 0.3 mrad
-dvojosý joystick control electric actuators can after the bus CAN Bus
-akumulátorový block with control panel and car charger

Optoelektronický block contains
-the apparatus. the capture and target tracking with digital CCD camera
-CCD TV camera operator
-the managing computer with Pentium-PC format 104 +
-laser distance gauge with safe wavelength 1.54 um
-mikrodisplej on the helmet
-temperature sensor and barometrického of air pressure
-control panel (common with electric actuators can)

The weight of the block with a laser is 6,1 kg, and needed the power of the 24 Vdc is 22 W.

Ensemble is able to work from an accumulator battery 24 V/95 Ah continuously min 24 hours.

Kod sistema minimizovan je utrošak električne energije potrebne za rad komponenti uz lakšu dopunu baterija.

http://en.valka.cz/viewtopic.php/t/94983/start/-1




Egipatski Sinaj 23 sa PATovima i raketama na TA-23E kupoli opremljenoj radarom RA-20S.

online
  • član biblioteke
  • Pridružio: 18 Jul 2007
  • Poruke: 22072
  • Gde živiš: iznad smoga Beograda

Tajvanski T-82 sa M39 topovima 20mm

offline
  • Pridružio: 14 Apr 2014
  • Poruke: 1103

Auuuu...čudnih stvari ima na internetima. Štugoliki M113.

offline
  • kljift
  • Legendarni građanin
  • Pridružio: 11 Okt 2009
  • Poruke: 6314

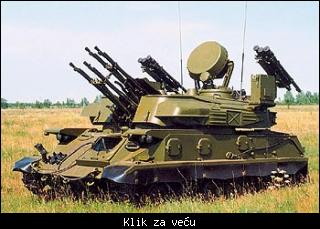

ZSU-23-4MP Biała

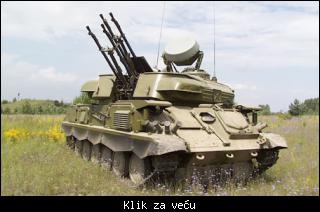

ZSU-23-4MP "Biała" poljska je modernizacija čuvene sovjetske Šiljke. Modernizacija je značajno unaprijedila borbene, taktičke i funkcionalne karakteristike sa dupliranim dometom i efikasnosti u borbu protiv vazdušnih ciljeva uz skraćeno vrijeme reagovanja.

Rad sistema je u potpunosti pasivan, održavanje je pojednostavljeno uz smanjenje posade sa četiri na tri operatera. Sistem je integrisan sa komandom PVO. Otkrivanje mete moguće je na 8 - 10km, a praćenje na daljinama od 7 - 8km.
"Biala" uključuje novi digitalni optički nišanski sistem i četiri lansera za GROM rakete. Automatski topovi AZP 23 opremljeni su sa modernom municijom uz povećanje dometa u odnosu na original za 1km. Domet Grom raketa iznosi 5,5km.
Oko 70 ZSU-23-4MP "Biała" samohodnih PVO topova proizvedeno je za potrebe poljske armije, kao jeftinija alternativa modernim poljskim 35mm PZA Loara samohodnim PVO topovima.

Biała:
enhancement of moving abilities and range increase,
reduction of the thermal and electromagnetic spectrum of the system,
adaptation of undetectable optoelectronic digital Fire Control System, which allows to track the targets all day and night,
providing two double containers for the GROM anti-aircraft missiles, which doubled the range flying targets can be engaged,
adaptation the new, sub-calibre ammunition, which enable to increase the range flying and land targets can be engaged,
elimination of radar, commander and drivers active observation sensors,
new passive optoelectronic-observation head,
significant reduction of thermal radiation, which revealed the set on the battlefield very quickly,
increasing of the target tracking range in the conditions of restricted visibility through the use of the passive infrared tracks,
providing the high-tech digital communications system, which enables the exchange of tactical data with the superordinate anti-aircraft command system.







Bjeloruska modernizacija oružnog i voznog dijela Šilke uz redukovanje infracrvenog i optičkog potpisa vozila.

Enhancement of the artillery system combat performance is achieved through:
conversion of the radar unit to solidstate electronics;
introduction of digital range finding;
enhancement of jam-resistance;
replacement of the calculating device by an all-in-one Digital Computing System (DCS), which is interfaced with power laying actuators via Digital Instrument FollowUp System (DIFS).

Upgrade of the tracked chassis is aimed at:
enhancing technical capabilities of the chassis systems;
increasing the speed;
introducing ergonomical improvements in the drivers compartment;
enhancing repairability;
reducing maintenance time.

Installation of a Self-Protection and Laser Warning Suite
Replacement of active night vision devices by passive ones
Installation of a diesel engine to the APU that is more economical as compared to the GTE

Target acquisition range, km 12
Target tracking range, km 10






ZSU-23-4M4 "Šiljka - Strelec". Ruska modernizacija ugovorena sa Egiptom. Modifikacija uključuje raketni modul "Strelec" sa raketama Igla S. Kompleks je prošao sva ispitivanja, Domet po daljini iznosi 6km, a po visini 3,5km.
Osim unapređenja oružnog sistema, rusko - bjeloruske modernizacije nude i opremanje sa 81mm bacačima dimnih kutija, senzore laserskog ozračenja, elektro - optičke osmatračke sprave (uključujući i televizijski sistem za vozača) i unaprijeđeni oružni radarski sistem. Mehanička transmisija zamijenjena je hidrostatičkom. Mobilnost je uvećana do nivoa glavnih borbenih tenkova.












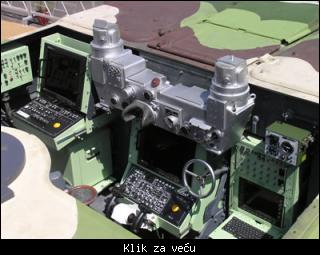

Modernizacija Šilki za potrebe Indijske vojske u kooperaciji indijske firme Bharat Dynamics i izraelskog Aerospejsa. Ugovorena je modernizacija 48 Šilki po cijeni od 104 miliona dolara.
Sistem je prilagođen radu u uslovima ometanja, dometima detekcije cilja većim od 15km, temperaturnom opsegu između minus 40 do plus 55 stepeni. Topovima moraju biti osposobljeni za gađanje meta sa brzinama od 450 milja po času na visinama od 1500 do 2500 metara. Namjena modernizacije je produživanje radnog vijeka sistema za 15 godina.

The modernized vehicle was displayed at Aero India, installed with a new 359 BHP Caterpillar main diesel engine and auxiliary power unit delivering 51 BHP, a pedestal mounted radar, thermal imager, daylight TV and laser rangefinder enabling the vehicle to operate in passive or 'emitting' search mode. The radar can detect targets at a range of 15km and track multiple targets at 9 km. The passive optronic sensor can operate independently of the radar detecting and tracking aerial targets as far as 8 km away. The four 23mm guns are effective at a range of 2,500 meters and altitude of 1,500 meters.

The vehicle is fitted with two operator consoles, providing complete situational picture, in addition to target tracking for specific engagements. The system will be capable of receiving target cueing from remote sensors, such as air surveillance radar. The new system has an option to integrate missile systems in the future.




Kao privatni projekat ZSU-23-4V1, Hollandse Signaalapparaten kompanije (danas Thales Nederland) obuhvatio je ZSU-23-4V1 bivše istočnonjemačke armije. Glavni dio unapređenja obuhvata modernizaciju radara i sistema za upravljanje vatrom. Prvi prototip kompletiran je 1998. Modernizovano vozilo opremljeno je sa ASADS Ka-band nišanskim radarom i PAGE I-band osmatračkim radarom.

Ko je trenutno na forumu


Ukupno su 974 korisnika na forumu :: 48 registrovanih, 4 sakrivenih i 922 gosta   ::   [ Administrator ] [ Supermoderator ] [ Moderator ] :: Detaljnije

Najviše korisnika na forumu ikad bilo je 2918 - dana 22 Nov 2019 07:48

Korisnici koji su trenutno na forumu:
Korisnici trenutno na forumu: A.R.Chafee.Jr., aerienne, aramis s, axa, Belac91, brufen, Buzdovan, comi_pfc, Drug pukovnik, dule10savic, Dusko Nikolin, Gargantua, Insan, Ivan Germanovic, Jethro, kaptain, kobaja77, Kubovac, KUZMAR, ljuba.b, LUDI, Marko Marković, maximumspid, MB120mm, mean_machine, mercedesamg, Mercury, MILO-VAN, Milos ZA, miodrag, Miskohd, Nebo_M, oldtimer, pein, RADOVAN.S, randja26, robytz, SAA fan, sasakrajina, Sibin, SOVO515, stalker, trajkoni018, Trpe Grozni, vlvl, voja64, zastavnik, zodiac94
