Su-35BM Flanker-E --VS-- F-22A Raptor

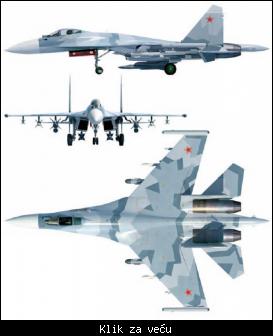

First Rival - Su-35BM Last Flanker
Main specifications:
Length 21.9 meters
Height 5.9 meters
Wingspan 15.3 meters
Take-off weight, with two R-77 and two R-73 25.3 tons
Take-off weight, with maximum payload 34.5 tons
Total thrust available, two Saturn 177S powerplants 29 tons
Thrust to weight ratio, under normal and maximum load 1.14 / 0.84
Maximum fuel in integrated fueltanks 11.5 tons
Maximum weapons load 8 tons
Service ceiling 18 kilometers
Range with maximum fuel, on sea-level and altitude 1,580 km / 3,600 km
Ferry range, with two PTB-2000 external tanks 4,500 km
Acceleration from 600kph to 1100kph, at 1000m alt and 50% fuel 13.8 seconds
Acceleration from 1100kph to 1300kph, at 1000m alt and 50% fuel 8.0 seconds
Maximum rate of climb, at 1000m alt 280 meters / sec
Maximum airspeed, low-level and altitude (200m / 11000m) 1,400 kph / M2.25
Maximum G-load 9 G’s
Take-off run, full afterburner, normal weight 400-450 meters
Landing roll, brakes + parachute, standard landing weight 650 meters
Information taken from official KnAAPO brochures
Weapons:
Novator R-72 (KS-172S-1) or Vympel R-37M (”Arrow”) 400 km range, active and semi-active radar, passive radiation guidance
Maximum of five carried. AAM.
Vympel R-77 / RVV-AE (”Adder”) 100 km range, active radar guidance
Maximum of twelve carried. AAM.
Vympel R-27ET[1] (”Alamo”) 110-130 km range, thermal guidance
Maximum of four carried. AAM.
Vympel R-27EP[1] (”Alamo”) 110-130 km range, passive radiation guidance
Maximum of four carried. AAM.
Vympel R-27ER[1] (”Alamo”) 110-130 km range, semi-active radar guidance
Maximum of eight carried. AAM.
Vympel R-73E (”Archer”) 30 km range, thermal guidance
Maximum of six carried. AAM.
Non-specified ultralong range air to ground missile Maximum of one carried. AGM.
Non-specified long range air to ground missile Maximum of three carried. AGM.
Non-specified long range anti-radar missile Maximum of five carried. AGM.
Non-specified long range air to ship missile Maximum of five carried. ASM.
Raduga X-59M[K] Ovod (”Kazoo”) 140 km range, TV guidance
Maximum of 5 carried, AGM/ASM.
Zvezda X-31A/P (”Krypton”) 70 / 140 km range, active radar / passive radiation guidance
Maximum of 6 carried, AGM.
Molniya X-29TE[L] (”Kedge”) 10 km range, TV / laser guidance
Maximum of 6 carried, AGM.
FSUE LGB-250 300 kg warhead, laser guidance
Maximum of eight carried, smart bomb.
FSUE KAB-500KR/OD 500 kg warhead, TV guidance
Maximum of eight carried, smart bomb.
FSUE KAB-1500KR/LG 1500 kg warhead, TV / laser guidance
Maximum of three carried, smart bomb.
S-25LD 10 km range, laser guidance
Maximum of six carried, guided rocket.
500kg class bomb Maximum of ten carried, gravity bomb.
250kg class bomb Maximum of thirty-two carried, gravity bomb.
B-8M-1 Maximum of 120 carried in six dispensers, unguided rocket.
B-13L Maximum of 30 carried in six dispensers, unguided rocket.
S-250FM-PU Maximum of six carried, unguided rocket.
Payload capacity from KnAAPO, weapon specs from various sources
http://www.aviapedia.com/fighters/su-35bmt-10bm-the-last-flanker
Second Rival - F-22A First Raptor
Specifications:
Function Air superiority fighter
Contractors
* Lockheed Martin Aeronautical Systems: F-22 program management, the integrated forebody (nose section) and forward fuselage (including the cockpit and inlets), leading edges of the wings, the fins and stabilators, flaps, ailerons, landing gear and final assembly of the aircraft.
* Lockheed Martin Tactical Aircraft Systems: Center fuselage, stores management, integrated navigation and electronic warfare systems (INEWS), the communications, navigation, and identification (CNI) system, and the weapon support system.
* Boeing: wings, aft fuselage (including the structures necessary for engine and nozzle installation), radar system development and testing, avionics integration, the training system, and flight-test development and management.
* Pratt & Whitney: F119-PW-100 engines that power the Raptor.
Major Subcontractors (partial list): Northrop Grumman, Texas Instruments, Kidde-Graviner Ltd., Allied-Signal Aerospace, Hughes Radar Systems, Harris, Fairchild Defense, GEC Avionics, Lockheed Sanders, Kaiser Electronics, Digital Equipment Corp., Rosemount Aerospace, Curtiss-Wright Flight Systems, Dowty Decoto, EDO Corp., Lear Astronics Corp., Parker-Hannifin Corp., Simmonds Precision, Sterer Engineering, TRW, XAR, Motorola, Hamilton Standard, Sanders/GE Joint Venture, Menasco Aerospace.
Propulsion two Pratt & Whitney F119-PW-100 engines
Thrust 35,000 lbst
Length 62.08 feet, 18.90 meters
Height 16.67 feet, 5.08 meters
Wingspan 44.5 feet, 13.56 meters
Wing Area 840 square feet
Horizontal Tailspan 29 feet, 8.84 meters
Maximum Takeoff Weight
Ceiling
Speed Mach 2.0 (supercruise: Mach 1.7)
Crew one
Armament:
* Two AIM-9 Sidewinders
* six AIM-120C Advanced Medium-Range Air-to-Air Missiles (AMRAAM)
* one 20mm Gatling gun
* two 1,000-pound Joint Direct Attack Munitions (JDAM)
First flight: September 7, 1997
Date Deployed deliveries beginning in 2002
operational by 2004
DOD's Projected Unit Prices Before and After Restructuring Production:
Unit Costs
Before restructuring
76
$142.6
362
$102.8
Restructured without initiatives
70
$200.3
368
$128.2
Restructured with initiatives
70
$200.8
368
$92.4
http://www.fas.org/programs/ssp/man/uswpns/air/fighter/f22.html
Sad da ih uporedimo:
Max. speed
Su-35 mah 2.25
F-22 mah 2.0
Thrust ratios low and high
Su-35 0.84-1.14 to 1
F-22 1.08-1.26 to 1
Thrust vectoring
Su-35 3d vectorng at+/- 15 degrees
F-22 2d vectoring at +/- 20 degrees
Climb rate
Su-35 330ms
F-22 unknown (faster than f-15 that is known)
Max. ceiling
Su-35 59000 ft
F-22 60000 ft
Engine max. thrust
Su-35 30855 lbs each total both 61710 lbs
F-22 35000+ lbs each total both 70000+ lbs
Stealth capabilties
Su-35 very limited
F-22 radar and infared signal absorbing technology lessened heat signature lessened visual profile
radar and detection jamming equipment of classified specs. internal
Range
Su-35 2175 miles
F-22 1841 miles
G loads
Su-35 9+gs
F-22 9+gs
Rough tie radar
Su-35 can see a normal target at 248 mile
supposed stealth tech is at 50 mile
F-22 can see a normal target at 250 miles stealth tech classified
considering the Su-35 has very limited stealth capabilities and the F-22 has alot of stealth tech
Which means the F-22 can see the Su-35 at 200 miles at the least while the Su-35 has to wait until it is within 50 miles to see the F-22
Shall I continue the slaughter of Su-35 because I can
so as you see the Su-35 is basically a suped F-15E with thrust vectoring it is a great plane to go up against F-15, F-16 and F/A-18s but it does not even compare or even have a prayer against a F-22, better luck with the Pak-fa but from I am seeing from reports same old story as the Su-35.
Prenet komentar (deo, ne sve) sa iste stranice sa koje je Su-35; http://www.aviapedia.com/fighters/su-35bmt-10bm-the-last-flanker
|
dok i on ne zavrsi u nekim Budjanovcima....
